Combining light weight benefits with Matthews trademark ruggedness, Aluminum Grid Clamps help make rigging faster and logistics easier without compromising performance.

Matthews says that “these lightweight aluminum clamps are CE/TUV Certified and make rigging faster and logistics easier without compromising on performance. Whether you’re hanging fixtures or configuring complex pipe grids, our aluminum grid clamps deliver professional-grade strength in a touring-friendly package” based on a collection that includes four versatile options: a standard clamp with 3/8″-16 bolt for hanging par cans and similar fixtures, a fixed right angle clamp for joining two pipes at 90 degrees when building grids or pipe structures, a swivel clamp that adjusts to accommodate varying angles in your pipe grid configurations, and a clamp with a 5/8″ baby pin.

The new Matthews black anodized aluminum grid clamps are built to deliver professional-grade strength for touring production or permanent installations. For maximum convenience each features wingnut mounting for secure installation and fit pipes with outer diameters ranging from 1.5″ (32mm) to 2″ (50mm). All are compatible with the Patriot Wrench.

Here is more information about the new products from Matthews:

The 3/8″-16 Aluminum Grid Clamp is ideal for hanging par cans and similar fixtures. It weighs just 1.08 lbs./.49 kg and supports 660-lbs./300 kg at a size of: 3.71″ x 1.2″ x 4.82″ (9.4 x 3.0 x 12.2 cm).

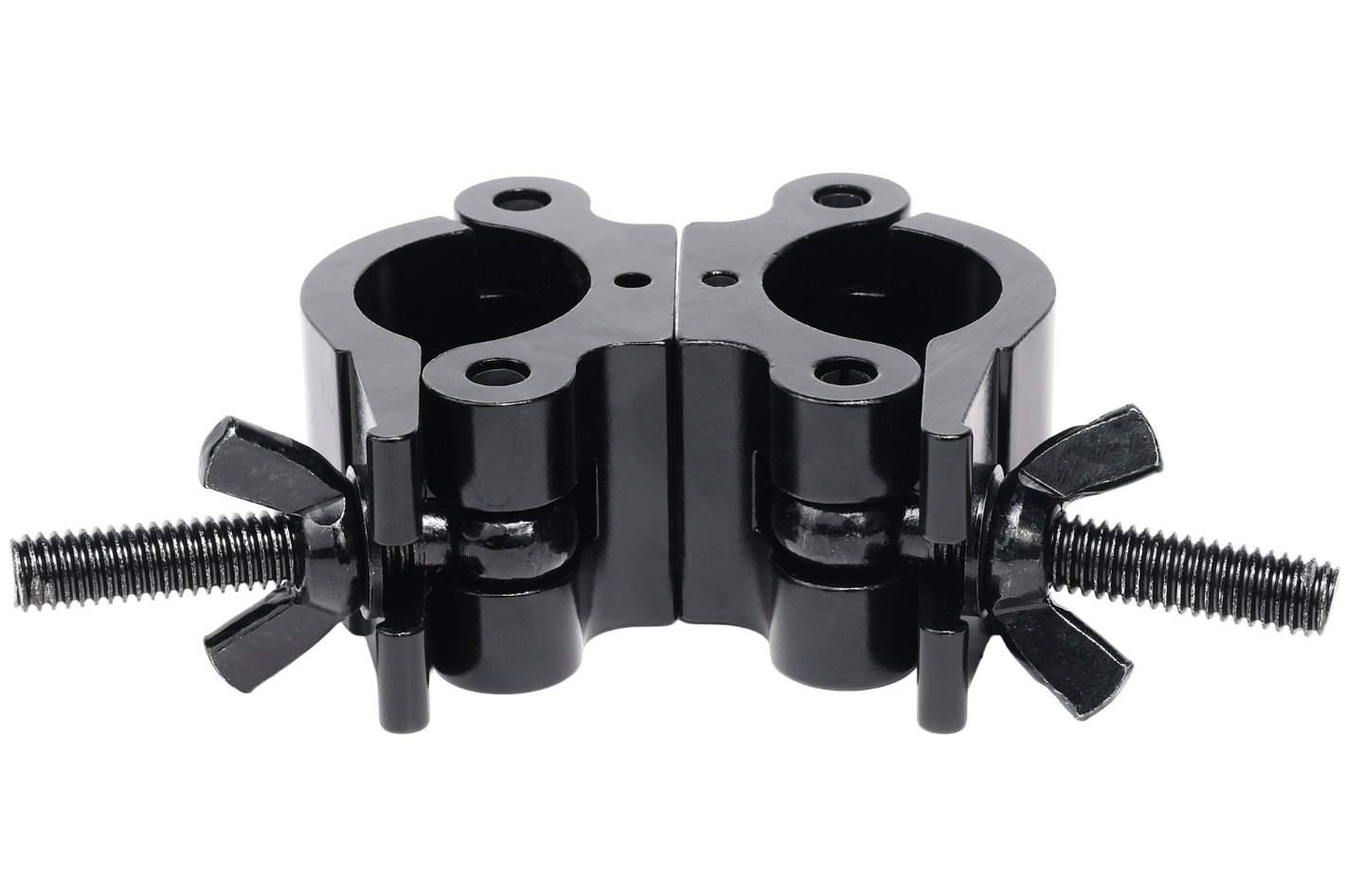

The Right Angle Aluminum Grid Clamp is ready to join two pipes at 90 degrees when building grids or pipe structures, with a 1100-lbs./500 kg safe working load. It measures 3.71″ x 3.71″ x 8.03″ (9.4 x 9.4 x 20.4 cm).

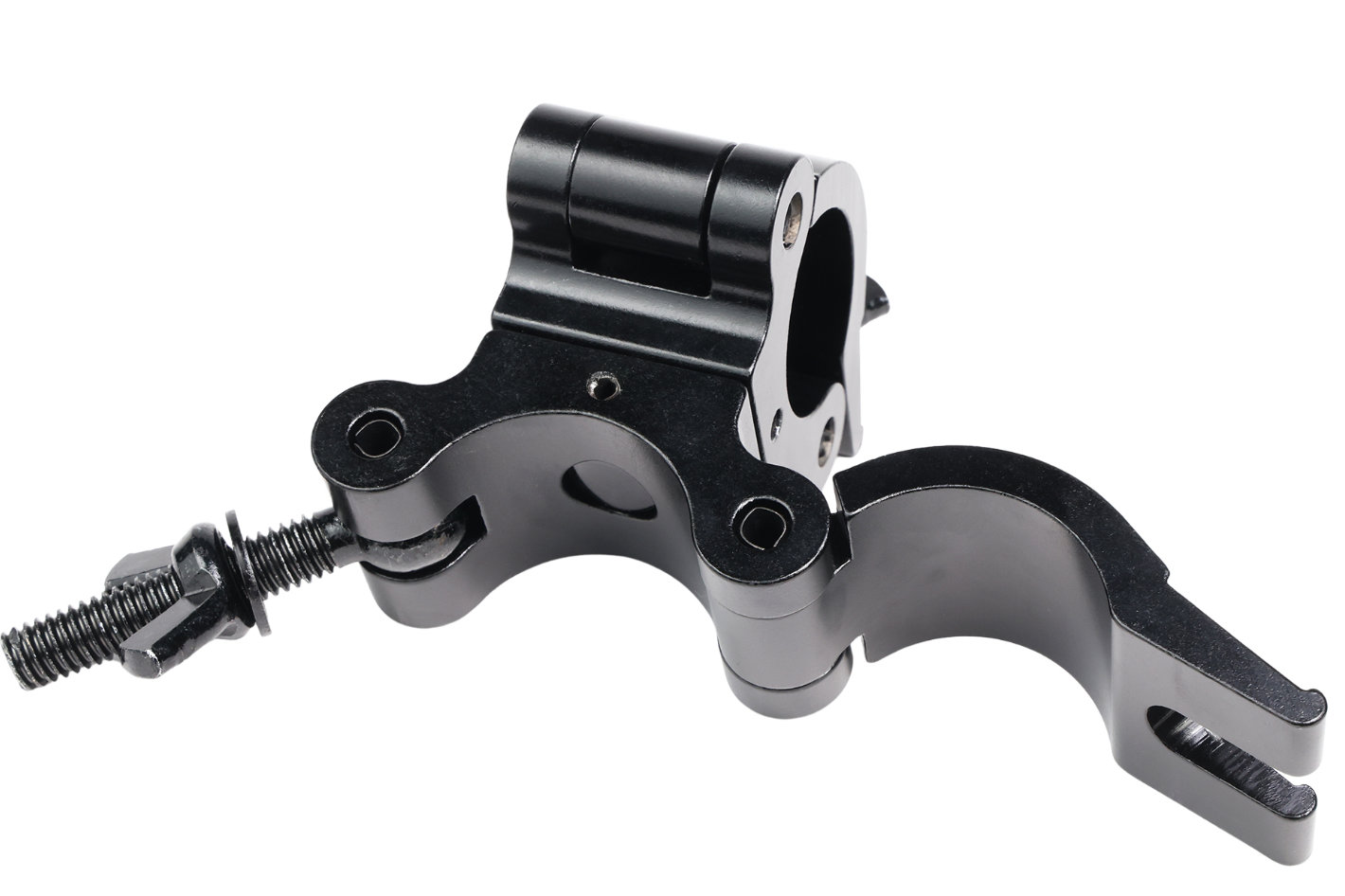

The Swivel Aluminum Grid Clamp is a 2.09 lbs./0.95 kg problem-solver that adjusts to accommodate varying angles in pipe grid configurations while securely supporting 1100-lbs./500 kg and measuring 3.71″ x 2″ x 8.04″ (9.4 x 5.1 x 20.4 cm).

The Baby Pin Aluminum Grid Clamp is built to stand up to constant use. This versatile amalgamation features a 5/8″ solid steel Baby Pin that’s tapped with industry-standard 1/4″-20 female threads. The Clamp size is 3.17″ x 1.2″ x 7.21″ (8.1 x 3.0 x 18.3 cm) and the combined weight is 1.38- lbs./0.63 kg.
